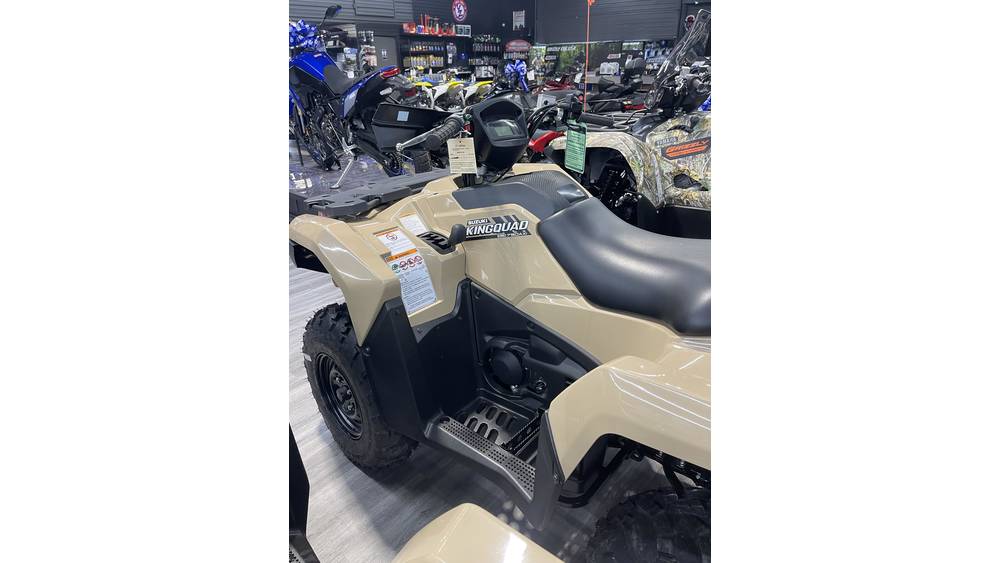

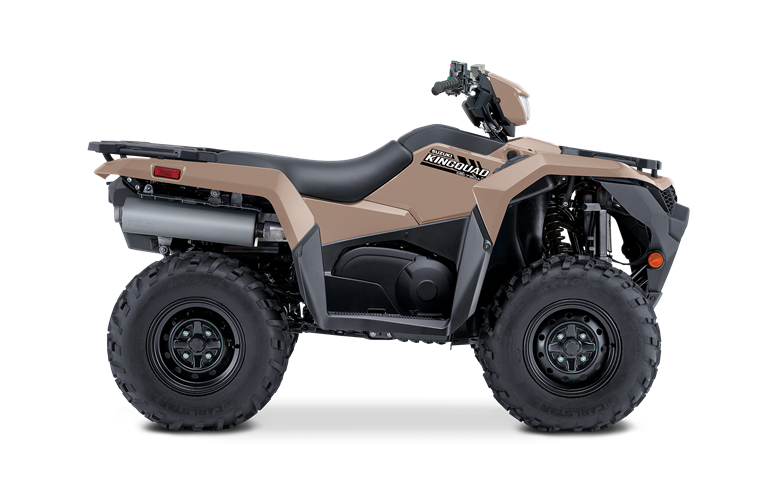

2025 Suzuki KingQuad 750AXi Power Steering - S0273

Color Options

Cast Carbon: +$0

Pricing

Warranty (Months): 24

Engine

Engine Type: Single-Cylinder

Cylinders: 1

Cooling: Liquid

Bore: 104 mm; 4.1 in

Stroke: 85 mm; 3.35 in

Displacement: 722 cc; 44.1 ci

Compression Ratio: 9.9:1

Starter: Electric

Fuel Type: Gas

Emissions Standards: Meets California Emissions

Carburetion Type: Fuel Injected

Transmission

Transmission Type: Continuously Variable (CVT)

Reverse: Yes

Drive Line

Driveline Type: Selectable 4X2 / 4X4

Technical Specifications

Length: 84.6 in; 2150 mm

Width: 47.8 in; 1215 mm

Height: 50.6 in; 1285 mm

Wheelbase: 50.6 in; 1285 mm

Ground Clearance: 10.2 in; 260 mm

Wet Weight: 721 lbs; 327 kg

Towing Capacity: 1322 lbs; 599.7 kgs

Fuel Capacity: 4.6 gal; 17.5 l

Storage Capacity: 0.6 gal

Exterior

Frame: Steel

Suspension

Front Suspension Type: Independent Double A-Arm

Front Travel: 6.7 in; 170.2 mm

Rear Suspension Type: Independent Double A-Arm

Rear Travel: 7.7 in; 195.6 mm

Wheels & Tires

Front Tire (Full Spec): Carlisle AT 25 X 8-12

Rear Tire (Full Spec): Carlisle AT 25 X 10-12

Brakes

Front Brake Type: Dual Hydraulic Disc

Rear Brake Type: Sealed Oil Bath Multi-Disc

Seats

Seat Height: 36.2 in; 920 mm

Number Of Seats: 1

Instrumentation

Speedometer: Standard

Trip Odometer: Standard

Lights

Type: Halogen
